Two paint colors can both be called “warm gray” and still look nothing alike once they are on your wall. The reason is usually Light Reflectance Value (LRV) and undertones. This guide explains what those terms mean, how to read them on a swatch, and how to check them in your own home before you buy.
If you would rather jump straight to specific color picks, see our guide to Sherwin-Williams neutral paint colors.
Once you master these two core concepts, you eliminate guesswork, save hundreds of dollars in wasted paint cans, and gain the ability to choose flawless paint colors for your home every single time.
Quick Answer: Key Takeaways for LRV and Paint Undertones
LRV defined: Light Reflectance Value measures how much light a paint color reflects, on a scale from 0 (black) to 100 (white).
A good range for main walls: An LRV of about 55-70 balances brightness and depth for most living spaces.
Mass tone vs. undertone: The mass tone is the main color you see. The undertone is the subtle base color (yellow, pink, green, blue, or gray) that shows up under certain lighting.
Light changes color: Cool light, from north-facing windows or 4000K+ bulbs, emphasizes cool undertones. Warm light, from south-facing windows or 2700K bulbs, emphasizes warm ones.
Test properly: Use a movable sample board with a white border instead of painting samples directly onto an existing wall.

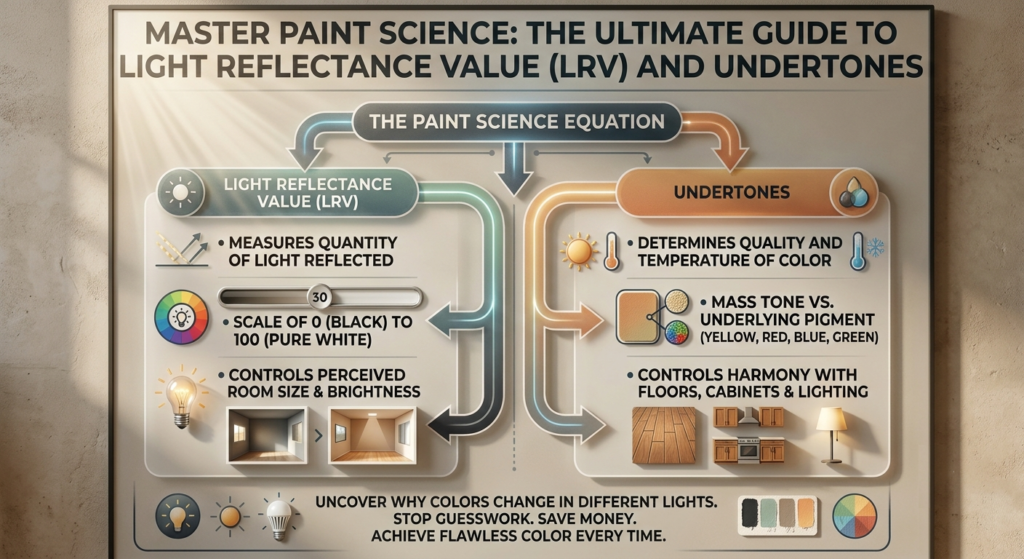

The Physics of Paint: What Light Reflectance Value (LRV) Actually Means
To understand how paint behaves on a wall, you must first understand how light interacts with surface pigments. When sunlight or artificial light hits a painted drywall surface, two things happen simultaneously: part of the light energy is absorbed by the paint’s chemical colorants, and part of the light energy is reflected back into the room.
Light Reflectance Value (LRV) is the official standardized numerical scale used by major paint manufacturers—including Sherwin-Williams, Benjamin Moore, and Farrow & Ball—to quantify this exact optical relationship.
The 0 to 100 Numerical Scale Explained
LRV 0: A surface that reflects no light at all. Real paints do not reach this, but the darkest ones sit in the single digits.
LRV 100: A surface that reflects all light. Real paints do not reach this either, and most architectural whites land in the 80s.
.
Luminance vs. Reflectance: Why Swatches Can Mislead You
How bright a color looks to your eye in the moment depends heavily on the lighting around it. LRV is a measured number, so it gives you a more reliable way to compare colors. A higher LRV generally means the color bounces more light around the room. A lower LRV absorbs more light, which can make a space feel cozier and more enclosed.

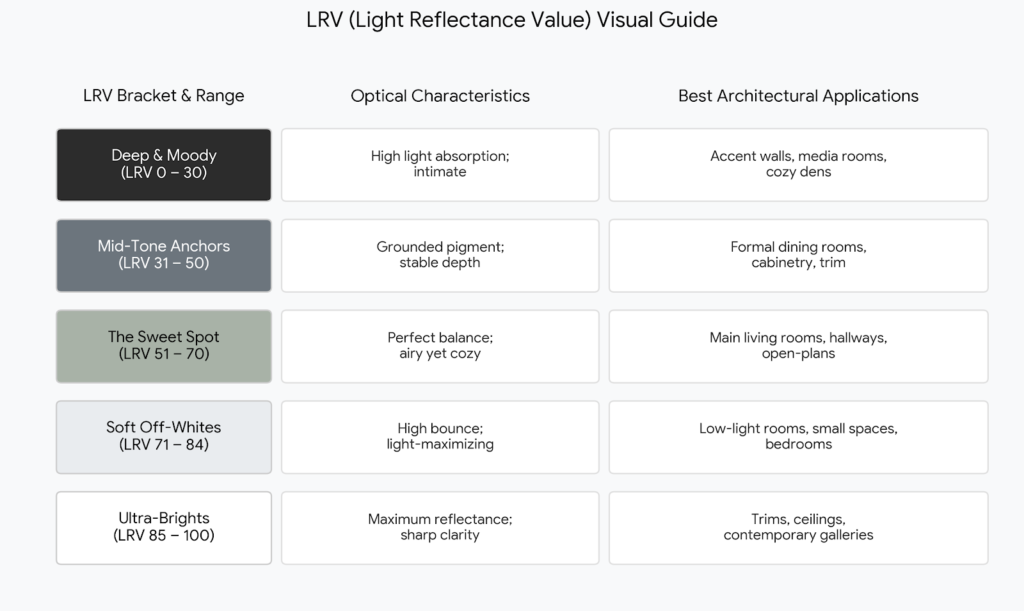

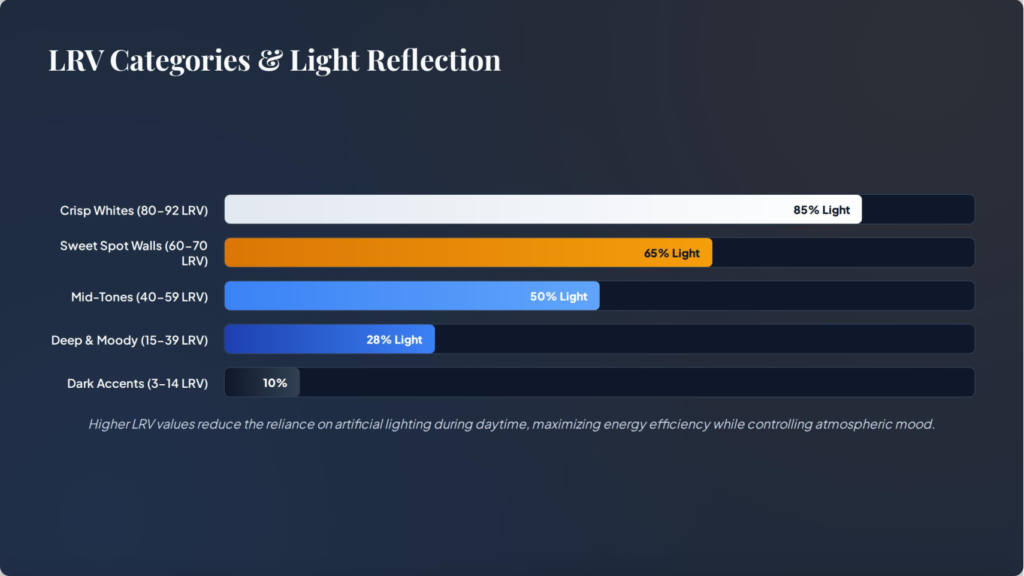

Deciphering the LRV Spectrum
Every paint color falls into a specific LRV bracket. Understanding these categories allows you to predict exactly how a shade will perform before you ever open a paint can.
Deep & Moody Darks (LRV 0-30): These colors absorb much more light than they reflect. They create intimate, dramatic rooms rather than making a space feel bigger. Examples include charcoal, navy, forest green, and espresso brown.
Mid-Tone Anchors (LRV 31-54): These colors keep strong pigment in most lighting. They suit cabinetry, kitchen islands, and rooms where you want a grounded feel. SW Balanced Beige (LRV 46) is one example.
The Balanced Range (LRV 55-70): This is a practical target for main living areas and open-concept spaces. Colors here, like SW Accessible Beige (LRV 58), keep a room feeling open in the daytime while carrying enough pigment to avoid looking flat or stark.
Soft Off-Whites & Creams (LRV 71-84): These suit rooms with limited light, since they reflect more of what is available without being stark. SW Shoji White (LRV 74) and SW Alabaster (LRV 82) fall here.
Ultra-Bright Whites (LRV 85+): These work well on trim, doors, and ceilings. On every wall of a living room, they can feel glaring in strong sun and look gray in dim corners.

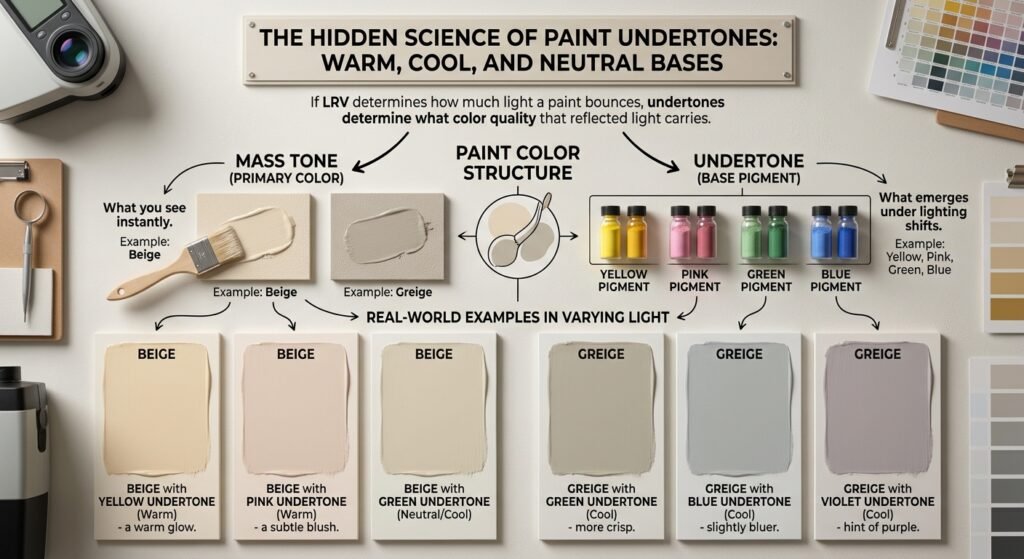

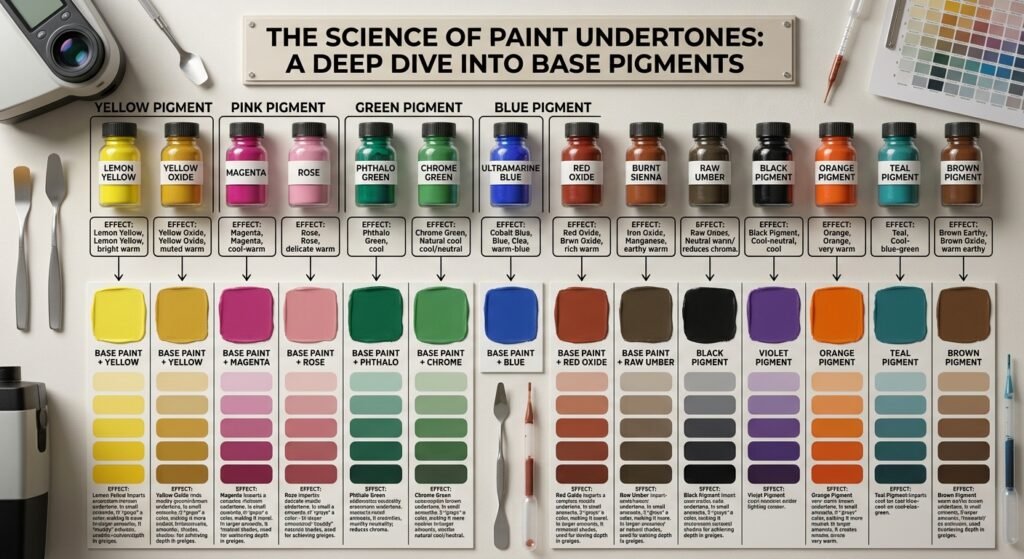

The Hidden Science of Paint Undertones: Warm, Cool, and Neutral Bases
If LRV determines how much light a paint bounces, undertones determine what color quality that reflected light carries.
Every paint color is manufactured by combining a base liquid with precise formulas of synthetic and natural colorants (such as raw umber, yellow oxide, thalo green, or magenta). The dominant color you identify immediately is called the mass tone (or top tone). The secondary color pigment hidden beneath the surface is the undertone.
Mass Tone vs. Underlying Pigment: Why Colors Shift
Consider two paints that both look like “light gray” on a swatch card.
Paint A is mixed with a drop of cobalt blue pigment.
Paint B is mixed with a drop of yellow oxide and raw umber pigment.
In the paint store under neutral light, both appear to be identical light grays. However, once applied to your living room walls:
Paint A reflects cool blue wavelengths, making the room feel crisp, cool, or even chilly.
Paint B absorbs cool light and reflects a warm, soft greige glow.

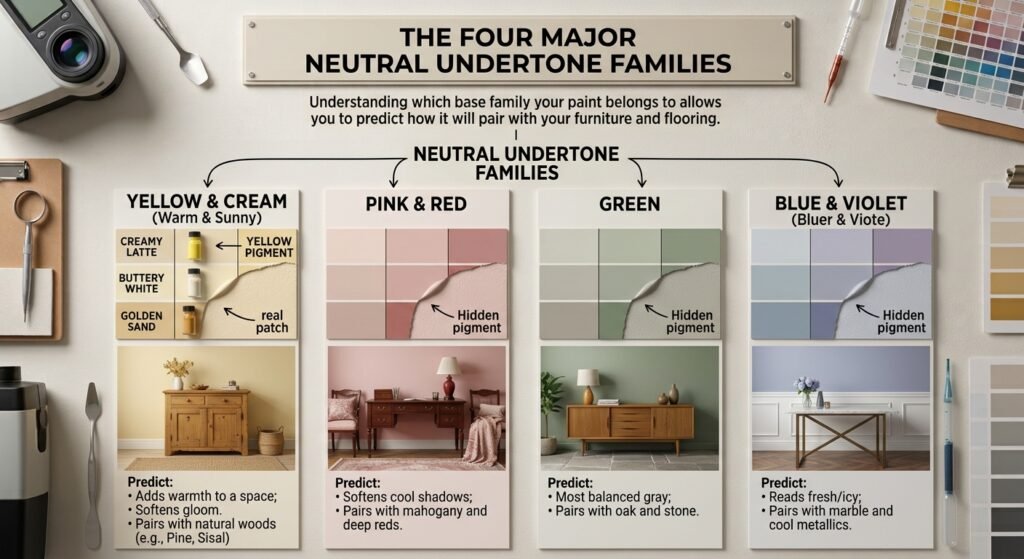

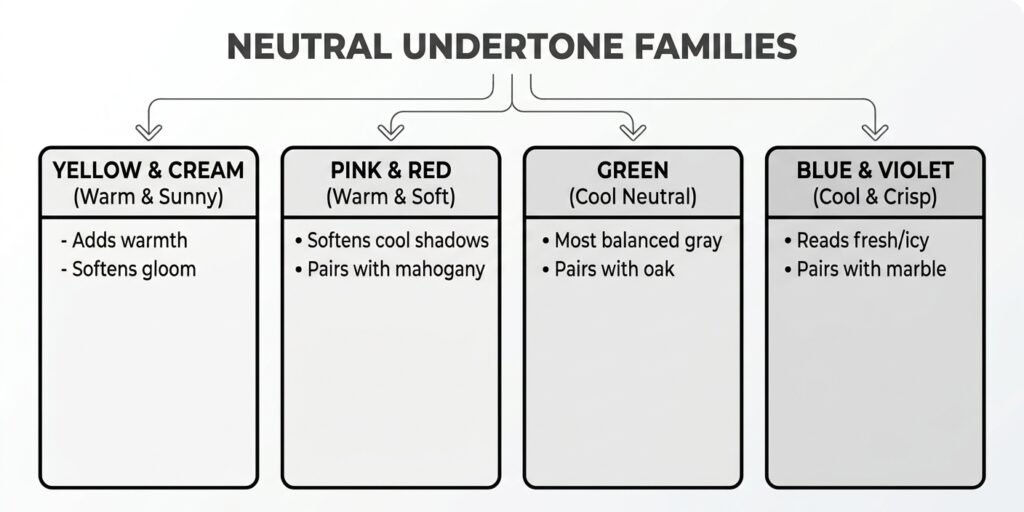

The Four Major Neutral Undertone Families
Understanding which base family your paint belongs to allows you to predict how it will pair with your furniture and flooring.
1. Yellow & Cream Base Undertones (Warm)
Yellow and golden-cream bases infuse warmth and cheerfulness into a room. They simulate the optical effect of warm sunshine.
Best Uses: North-facing rooms, shadowy hallways, and spaces with cool blue natural light.
Watch Out For: In south-facing rooms with intense golden sunlight, heavy yellow bases can shift toward an unwanted neon-butter tone.
2. Pink, Red, & Peach Base Undertones (Warm)
Red and pink undertones create taupes and soft mauve-tinted grays. They provide a gentle, flattering warmth.
Best Uses: Rooms with dark wood furniture, traditional architecture, or spaces that need an inviting, subtle blush quality.
Watch Out For: If paired accidentally with yellow-oak floors, pink undertones can clash significantly, making the wall look purplish-pink.
3. Green Base Undertones (Cool Neutral)
Grays and greiges with a green base are sometimes called “cool greiges.” They can work as a middle ground between warm wood and cool stone.
Best Uses: Rooms that mix warm wood floors with cool surfaces like stone or tile.
Watch Out For: Under some LED bulbs, green-based grays can take on an olive or murky look, so always check them under your own lighting.
4. Blue & Violet Base Undertones (Cool)
Blue and violet undertones form crisp, classic cool grays and icy whites.
Best Uses: Ultra-modern homes, south-facing rooms with abundant warm sunshine, and bathrooms featuring white marble tile.
Watch Out For: In north-facing rooms, blue undertones amplify cool blue daylight, making walls look sterile, chilly, or dull.
Comprehensive Comparison: LRV vs. Undertones (Which Matters More?)
When evaluating paint, homeowners frequently ask: Should I prioritize matching the Light Reflectance Value or matching the undertone? The short answer is that LRV controls room atmosphere and scale, while undertones control material harmony and color balance.
| Feature / Characteristic | Light Reflectance Value (LRV) | Paint Undertones |
|---|---|---|
| Core Function | Controls light bounce & room scale | Controls color warmth & harmony |
| Primary Impact | Perceived brightness & volume | Visual match with fixed elements |
| Influenced Most By | Window orientation & lumen output | Bulb color temp (K) & foliage |
| Common Failure Result | Room feels gloomy or blinding | Room feels clashing or “off” tone |
| Measurement Method | Standardized numerical scale 0–100 | Visual comparison against pure white |

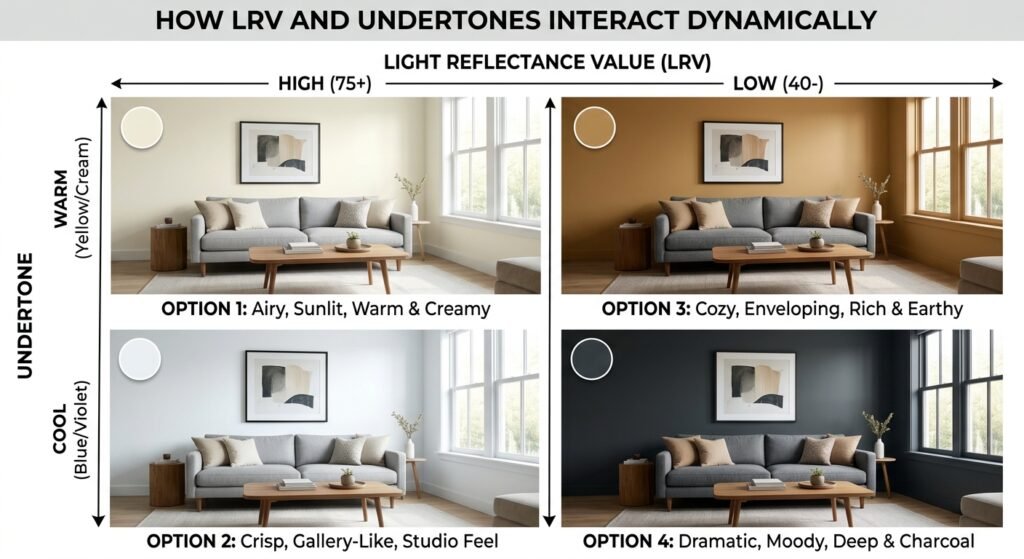

How LRV and Undertones Interact Dynamically
To see how these two variables work together, look at how four distinct combinations of LRV and undertone alter the exact same living room:
High LRV + Warm Undertone (e.g., SW Greek Villa - LRV 84, Warm Base): Creates an airy, sunlit room that feels physically open, soft, and comfortable—even under dim indirect daylight.
High LRV + Cool Undertone (e.g., SW Extra White – LRV 86, Cool Base): Yields a bright, gallery-like space with high visual contrast. Excellent for modern architecture, but can feel chilly in low-light environments.
Low LRV + Warm Undertone (e.g., SW Balanced Beige – LRV 46, Warm Base): Wraps the room in a rich, enveloping warmth. It shrinks the visual boundaries of large spaces to make them feel cozy and grounded.
Low LRV + Cool Undertone (e.g., SW Peppercorn – LRV 10, Cool Base): Delivers a dramatic, moody aesthetic. The cool base keeps the dark color looking crisp rather than muddy.

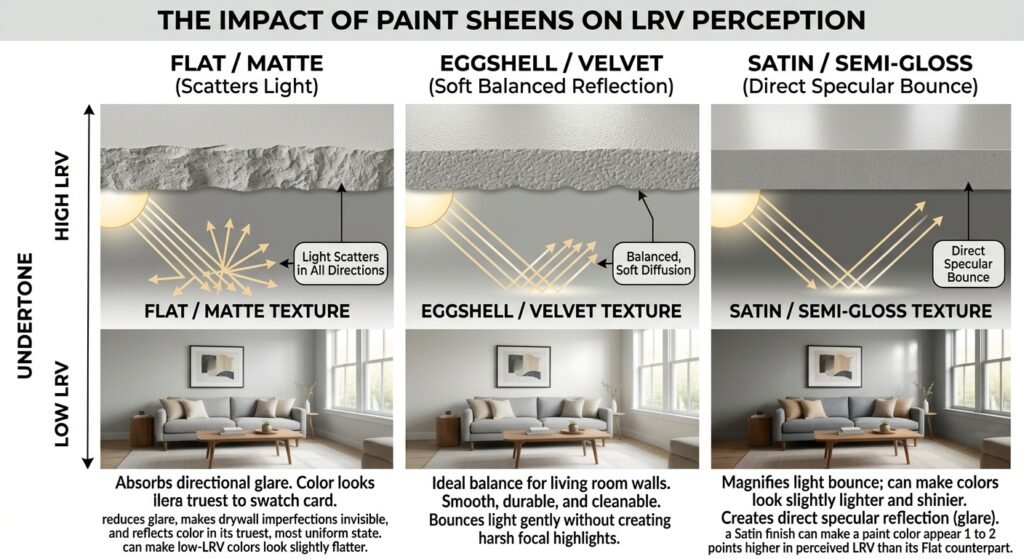

How Paint Sheen Affects the Way a Color Looks
The finish (or sheen) you select physically alters how LRV is perceived by the human eye:
Flat / Matte: Scatters light, reduces glare, and hides wall imperfections. Dark colors can look slightly flatter in this finish.
Eggshell / Velvet: A soft, low-sheen option that suits most main walls.
Satin / Semi-Gloss: Reflects light more directly, which adds glare and can make a color look slightly lighter or different than the same color in a flat finish. These sheens are better for trim, kitchens, and bathrooms.

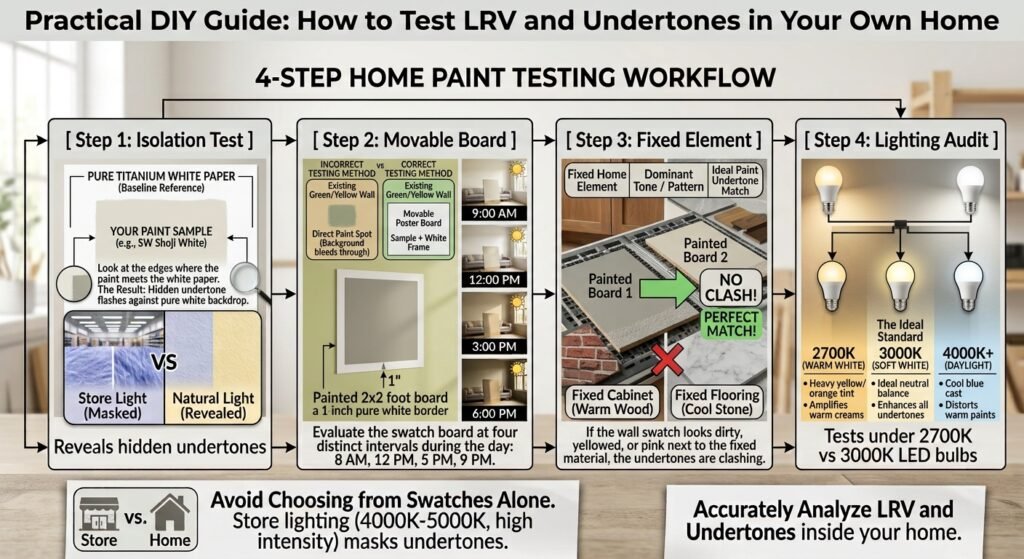

Practical DIY Guide: How to Test LRV and Undertones in Your Own Home
You should never choose a paint color based solely on how a tiny paper swatch looks under the fluorescent lighting of a home improvement store. Retail store lighting operates around 4000K to 5000K color temperatures with high artificial intensity, which completely masks hidden undertones.
Here are four practical, DIY methods you can use to accurately analyze LRV and undertones inside your own home.

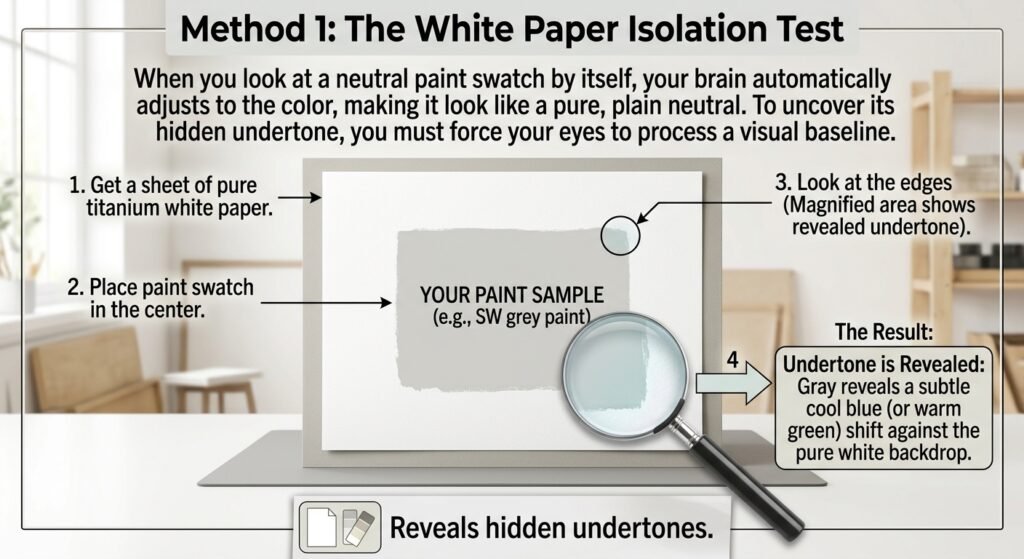

Method 1: The White Paper Isolation Test (Uncovering Hidden Undertones)
When you look at a neutral paint swatch by itself, your brain automatically adjusts to the color, making it look like a pure, plain neutral. To uncover its hidden undertone, you must force your eyes to process a visual baseline.
Get a sheet of bright, pure titanium white printer paper (or a pure white poster board).
Place your paint swatch directly in the center of the white paper.
Look at the edges where the paint meets the white paper.
The Result: The hidden undertone will immediately become visible. A gray swatch will instantly reveal its true identity—flashing subtle green, pink, yellow, or blue against the pure white backdrop.

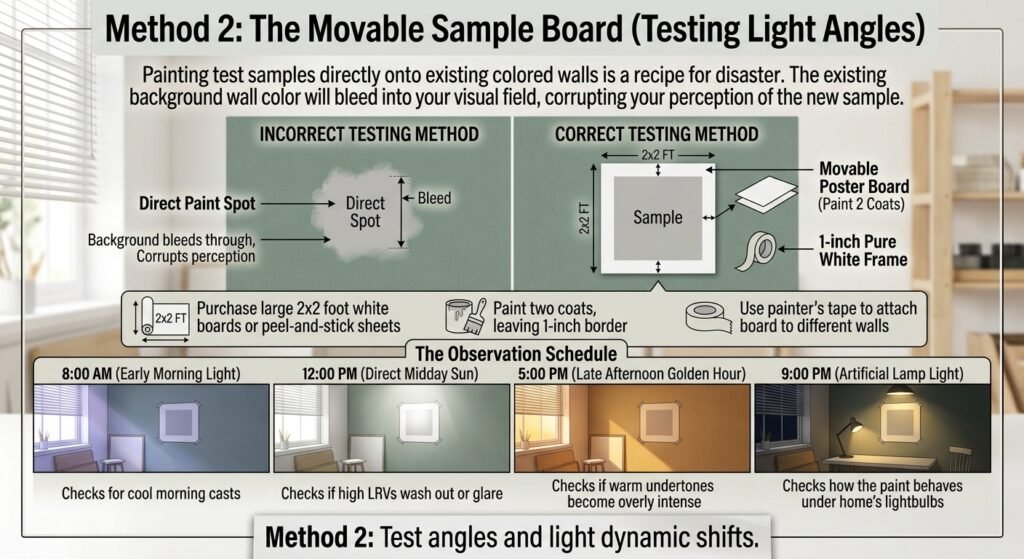

Method 2: The Movable Sample Board (Testing Light Angles)
Painting test samples directly onto existing colored walls is a recipe for disaster. The existing background wall color will bleed into your visual field, corrupting your perception of the new sample.
Purchase large 2×2 foot white poster boards or removable peel-and-stick sample sheets (like Samplize).
Paint two coats of your sample color onto the poster board, leaving a 1-inch pure white border around the outside edge. This white border acts as a visual buffer against your current wall color.
Use painter’s tape to attach the board to different walls in your living room.
The Observation Schedule: Evaluate the swatch board at four distinct intervals during the day:
8:00 AM (Early Morning Light): Checks for cool morning casts.
12:00 PM (Direct Midday Sun): Checks if high LRVs wash out or glare.
5:00 PM (Late Afternoon Golden Hour): Checks if warm undertones become overly intense.
9:00 PM (Artificial Lamp Light): Checks how the paint behaves under your home’s lightbulbs.

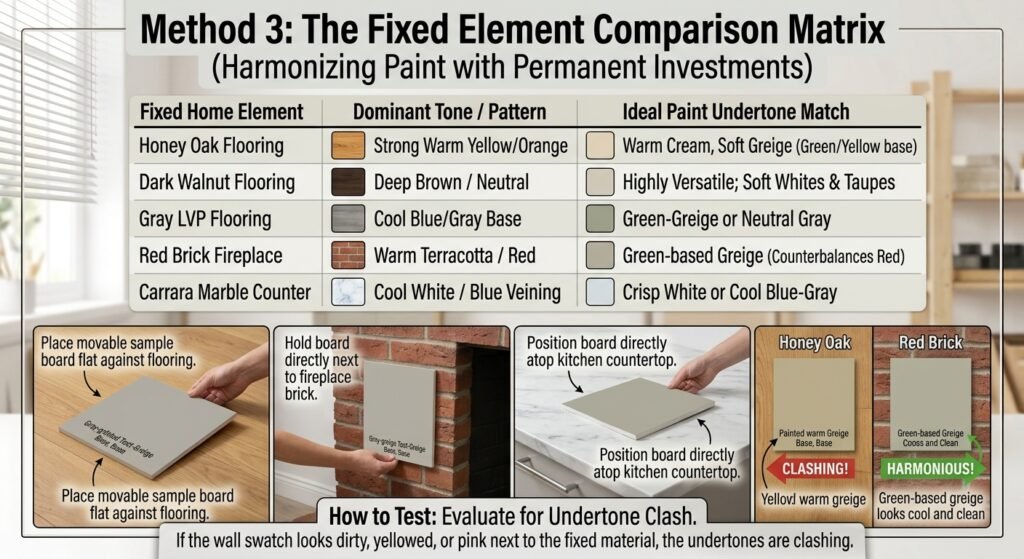

Method 3: The Fixed Element Comparison Matrix
Wall paint can easily be changed, but fixed architectural elements—such as hardwood floors, kitchen countertops, stone fireplaces, and tile—are permanent investments. Your paint undertones must harmonize with these fixed elements.
How to Test: Place your movable sample board flat against your flooring, directly next to your fireplace brick, or directly atop your kitchen countertop. If the wall swatch looks dirty, yellowed, or pink next to the fixed material, the undertones are clashing.

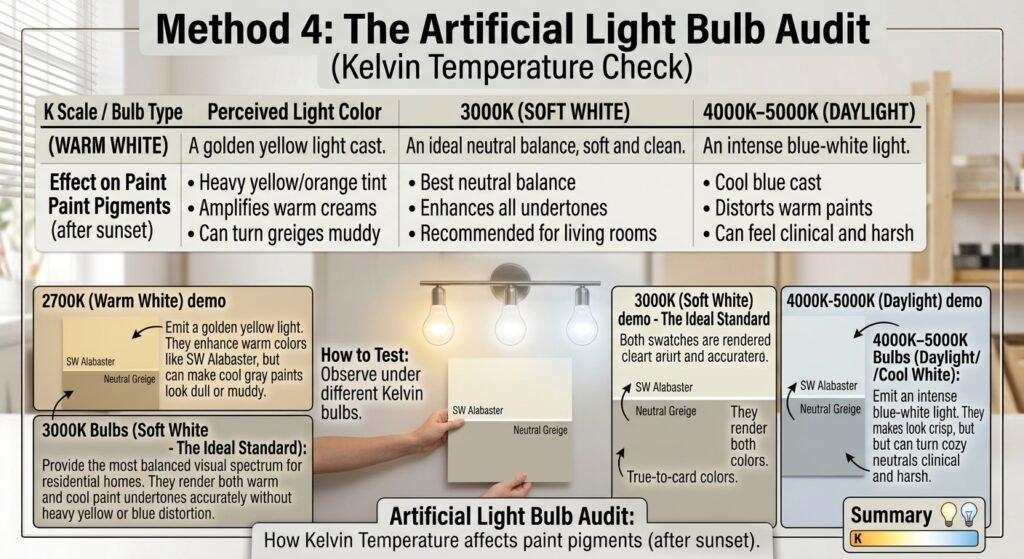

Method 4: The Artificial Light Bulb Audit (Kelvin Temperature Check)
The color temperature of your light bulbs—measured on the Kelvin (K) scale—directly controls how paint pigments appear after sunset.
2700K Bulbs (Warm White): Emit a golden yellow light. They enhance warm colors like SW Alabaster, but can make cool gray paints look dull or muddy.
3000K Bulbs (Soft White – The Ideal Standard): Provide the most balanced visual spectrum for residential homes. They render both warm and cool paint undertones accurately without heavy yellow or blue distortion.
4000K–5000K Bulbs (Daylight/Cool White): Emit an intense blue-white light. They make colors look crisp, but can turn cozy warm neutrals clinical and harsh.

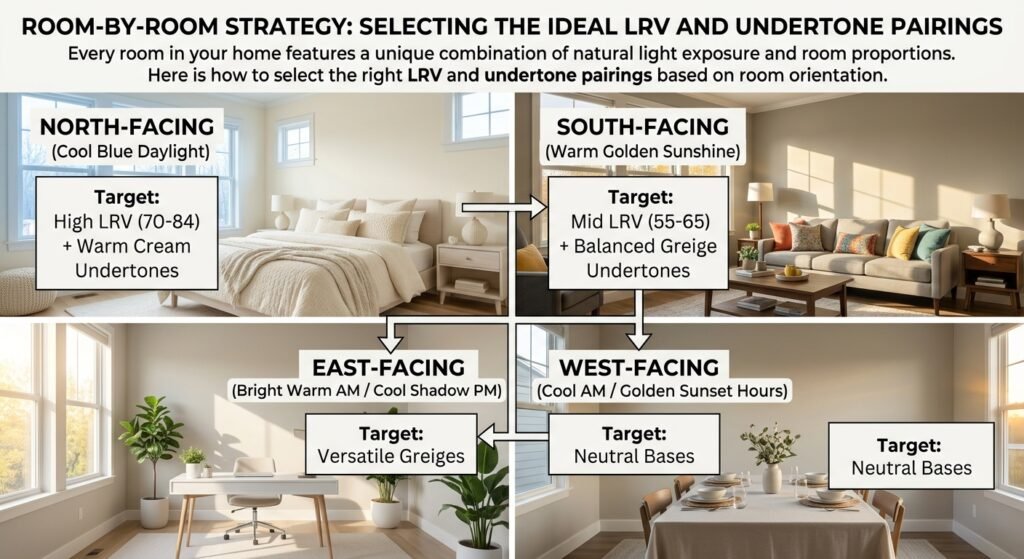

Room-by-Room Strategy: Choosing LRV and Undertones by Exposure
Every room in your home features a unique combination of natural light exposure and room proportions. Here is how to select the right LRV and undertone pairings based on room orientation.
1. North-Facing Rooms
North-facing windows receive indirect daylight that carries a subtle blue-gray tint throughout the day. This cool light flattens paint colors and creates dim shadows in corners.
Target LRV: High (LRV 70 to 84).
Ideal Undertones: Warm yellow, gold, or soft cream bases.
Top Paint Picks: SW Greek Villa (LRV 84) or SW Alabaster (LRV 82).
Why It Works: The warm cream bases counteract the cool blue daylight, preventing the room from feeling shadowy or cold.
2. South-Facing Rooms
South-facing spaces receive intense, golden sunlight from morning through late afternoon.
Target LRV: Medium / Balanced (LRV 55 to 68).
Ideal Undertones: Balanced greiges with subtle green or neutral gray bases.
Top Paint Picks: SW Accessible Beige (LRV 58) or SW Repose Gray.
Why It Works: The neutral gray/green undertone stabilizes the paint, preventing direct golden sunlight from turning the walls an overly vibrant yellow.
3. East-Facing Rooms (Morning Sunlight vs. Afternoon Shadow)
East-facing rooms enjoy warm, yellow sunrise light in the morning, followed by cooler, indirect shade in the afternoon.
Target Strategy: Select a versatile neutral with an LRV of 70 to 75 that balances both warm and cool lighting shifts.
Top Paint Pick: SW Shoji White (LRV 74).
4. West-Facing Rooms (Cool Mornings vs. Golden Sunset)
West-facing spaces start the day in cool morning shadow, then experience a flood of warm, golden light during late afternoon and sunset.
Target Strategy: Avoid strongly yellow bases, which can look fiery hot during golden hour. Opt instead for balanced greiges or soft warm taupes.
Top Paint Pick: SW Accessible Beige (LRV 58).
5. Windowless Basements and Hallways (Maximizing Artificial Light)
Windowless spaces rely 100% on artificial light fixtures.
Target LRV: High (LRV 75 to 85).
Ideal Strategy: Pair high-LRV paint with 3000K light fixtures. This setup maximizes light bounce around the space without relying on natural windows.
For more color options and styling ideas for each room, see our guide “Sherwin-Williams neutral paint colors”.

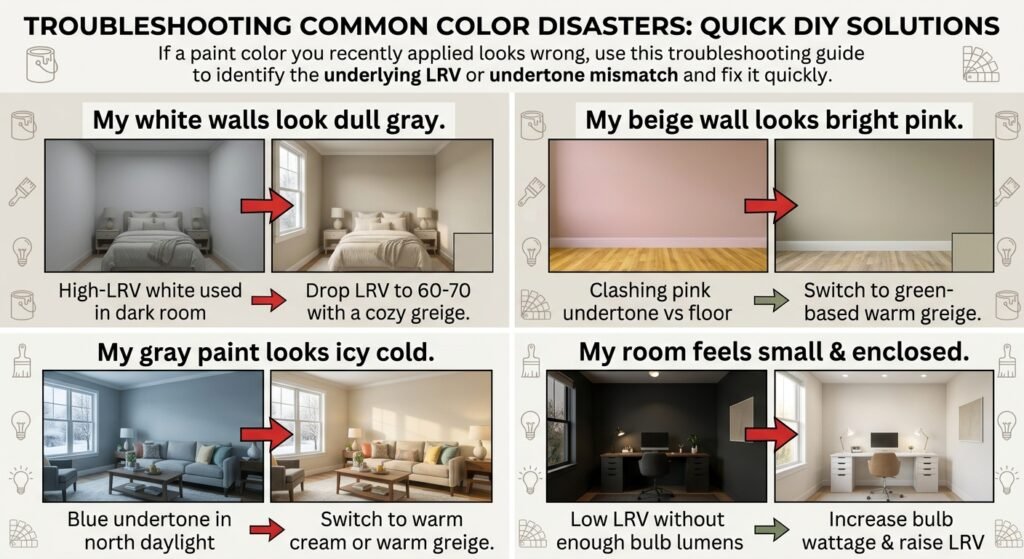

Troubleshooting Common Color Disasters: Quick DIY Solutions
If a paint color you recently applied looks wrong, use this troubleshooting guide to identify the underlying LRV or undertone mismatch and fix it quickly.
| Observed Problem | Root Cause | Quick DIY Fix |
|---|---|---|
| “My white walls look dull gray.” | High-LRV white used in dark room | Choose a warm greige around LRV 55–65 |
| “My beige wall looks bright pink.” | Clashing pink undertone vs floor | Switch to a neutral with less red in the base |
| “My gray paint looks icy cold.” | Blue undertone in north daylight | Switch to warm cream or warm greige |
| “My room feels small & enclosed.” | Low LRV without enough bulb lumens | Increase bulb wattage & raise LRV |
Problem 1: “I painted my small, dark room bright white, but it looks like a dingy gray cave.”
The Root Cause: High-LRV whites (LRV 85+) require abundant light to bounce. If there is no natural light coming into the room, there is nothing for the white paint to reflect. In shadow, high-white paint simply turns a flat, dingy gray.
The Quick Fix: Stop trying to force a dark room to look white. Instead, select a warm, rich greige in the 55 to 65 LRV range (like SW Accessible Beige). The deeper pigment gives the shadowy walls cozy structure and purpose.
Problem 2: “My neutral beige wall suddenly turned bright pink next to my hardwood floors.”
The Root Cause: The paint likely has a pink or red undertone that clashes with the warm yellow or green tones in your wood floors.
The Quick Fix: Choose a neutral with less red in its base, such as a balanced warm greige, and sample it directly next to your flooring before repainting.
Problem 3: “My gray walls look icy blue and clinical.”
The Root Cause: You selected a cool-toned gray with blue/violet undertones in a north-facing room or under 4000K+ cold lightbulbs.
The Quick Fix: Swap your artificial lightbulbs to 3000K Soft White. If the blue tint remains during the daytime, repaint with a warm greige or cream shade.
Problem 4: “My white baseboard trim makes my beige walls look dirty.”
The Root Cause: Your trim paint is an ultra-stark, cool blue-white, while your wall paint is a warm, creamy beige. The stark contrast makes the warm wall look yellowed by comparison.
The Quick Fix: Repaint your trim in a versatile, softer white like SW Pure White (SW 7005). It provides a clean finish without cold blue undertones that clash with warm walls.
Frequently Asked Questions (FAQ) About LRV and Paint Science
Q: Where can I find the official LRV of a Sherwin-Williams paint color?
A: The official LRV is printed directly on the back of physical Sherwin-Williams paper color swatches. You can also find it on the official Sherwin-Williams website by looking under the “Details” or “Color Details” tab for any specific color code.
Q: Does painting a small living room with a high LRV color actually make it feel bigger?
A: Yes, but only if the room receives adequate natural light. High-LRV paints bounce light off surfaces, pushing wall boundaries outward visually. However, if the small room lacks natural light, a high-LRV white will simply look shadowy; in that scenario, a mid-tone color (LRV 50–60) is a better choice.
Q: Can two paints have the exact same LRV but look completely different?
A: Absolutely. LRV only measures the total quantity of reflected light, not the quality or color temperature of that light. Two paints can both have an LRV of 60, but if one has a yellow undertone and the other has a blue undertone, they will look completely different on your walls.
Q: How does paint sheen affect Light Reflectance Value?
A: The LRV printed for a color is a manufacturer measurement. In practice, glossier sheens like satin and semi-gloss reflect light more directly, which can make the same color look slightly lighter or add glare compared with a flat finish.
Q: What is the best lightbulb temperature for viewing true paint colors?
A: 3000K (Soft White) LED bulbs offer the most accurate color rendering for residential interiors. They provide a balanced spectrum that avoids the heavy yellow tint of 2700K bulbs and the harsh blue cast of 4000K daylight bulbs.
Q: How do I stop a warm off-white paint from looking neon yellow in southern light?
A: Strong warm sunlight can intensify yellow bases. Try a balanced greige with a gray lean, such as SW Accessible Beige or SW Repose Gray, and sample it on the wall you plan to paint.
Q: What is the difference between a mass tone and an undertone?
A: The mass tone is the primary, dominant color you recognize instantly (e.g., beige, gray, or white). The undertone is the subtle underlying color pigment (yellow, pink, green, blue, or violet) created by the specific mixture of colorants added to the paint base.
Q: Is LRV important when choosing exterior paint colors?
A: Yes. Colors usually look lighter in direct outdoor sun than they do indoors. Some materials, such as vinyl siding, also have manufacturer limits on how dark a color can be because dark colors absorb more heat, so check your siding manufacturer’s guidance before choosing.
Master Your Home’s Paint Science Today
Selecting the perfect paint color does not have to feel like a gamble. By understanding how Light Reflectance Value (LRV) controls light bounce and how undertones dictate color harmony, you gain complete control over your home’s interior design.
Before buying your next gallon of paint, take a systematic approach:
Identify your room’s natural window exposure (North, South, East, or West).
Set your target LRV range (aim for roughly 55-70 for main living areas).
Test your top candidates using movable poster boards framed with a white border.
Audit your samples under morning light, late afternoon sun, and 3000K artificial lamp bulbs.
By testing methodically and honoring the physics of paint, you will create a beautifully balanced home filled with rich, cohesive color that looks incredible in every light!
